This Process registers a User’s registered, verified email address or mobile number as a Multi-Factor Authentication (MFA) option. The desired authentication identifier (authN ID) must already be registered and verified. In other words, the email address or mobile number must be registered as an attribute on the Digital Identity Management User entity, with an activated status. Non-verifiable aliases cannot be added as an MFA option.

​
Process Flow

This flow describes the Process at a high level. Preconditions
  • The user is currently authenticated.
  • The desired email address or mobile number is already a registered, verified authN ID.
Basic Flow
  1. The user navigates to the Security settings (or your client UI’s equivalent) and selects to register their email or mobile for Multi-Factor Authentication. The client initializes the Process.
  2. Digital Identity Management prompts the client for the user’s password, and the client UI prompts the user to enter it. Note: The Process errors out if the end user does not have a password (i.e., they onboarded with a social account ).
  3. The user provides their password, and the client passes it back to Digital Identity Management.
  4. Digital Identity Management returns an indexed list of the current user’s registered, verified authN IDs, and the client renders the list for the user.
  5. The user makes a selection, and the client passes that selection back to Digital Identity Management.
  6. Digital Identity Management sets the selected email or mobile as an MFA option.
Post-conditions
  • The authN ID (email or mobile) is now an option for the user if they trigger an MFA check.
  • If the user is prompted for MFA during their sign-in, then they can select this option as the target channel to receive an MFA code.
Possible or Common Errors
  • Invalid authN ID specified by the client.
  • Failed and reached the maximum number of retry attempts.
  • The user does not have a password, and must first set one.

​
Settings

This Process currently has no relevant app settings to configure the Process API responses or Process logic/behavior. However, additional settings may be introduced over the course of future releases.

​
User Journey Flow Diagram

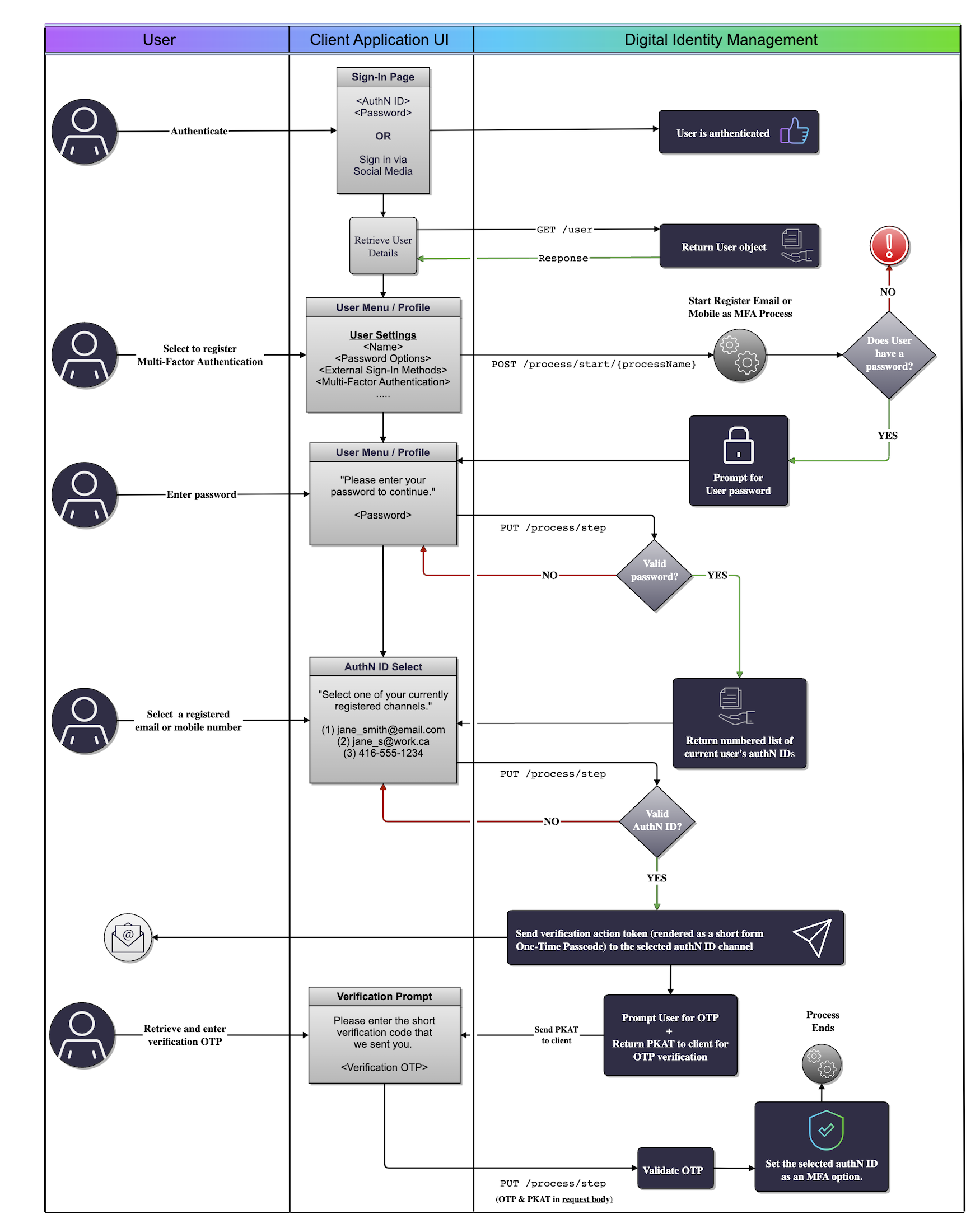

This diagram illustrates the standard user journey using the Register Email or Mobile as MFA Process. [product: dim][/product: dim]

​
Use Cases

The following use cases provide guided API walk-throughs of this Process for client developers: Parent topic:Multi-Factor Authentication Management
