Onboard and Authenticate User with Social Account Process

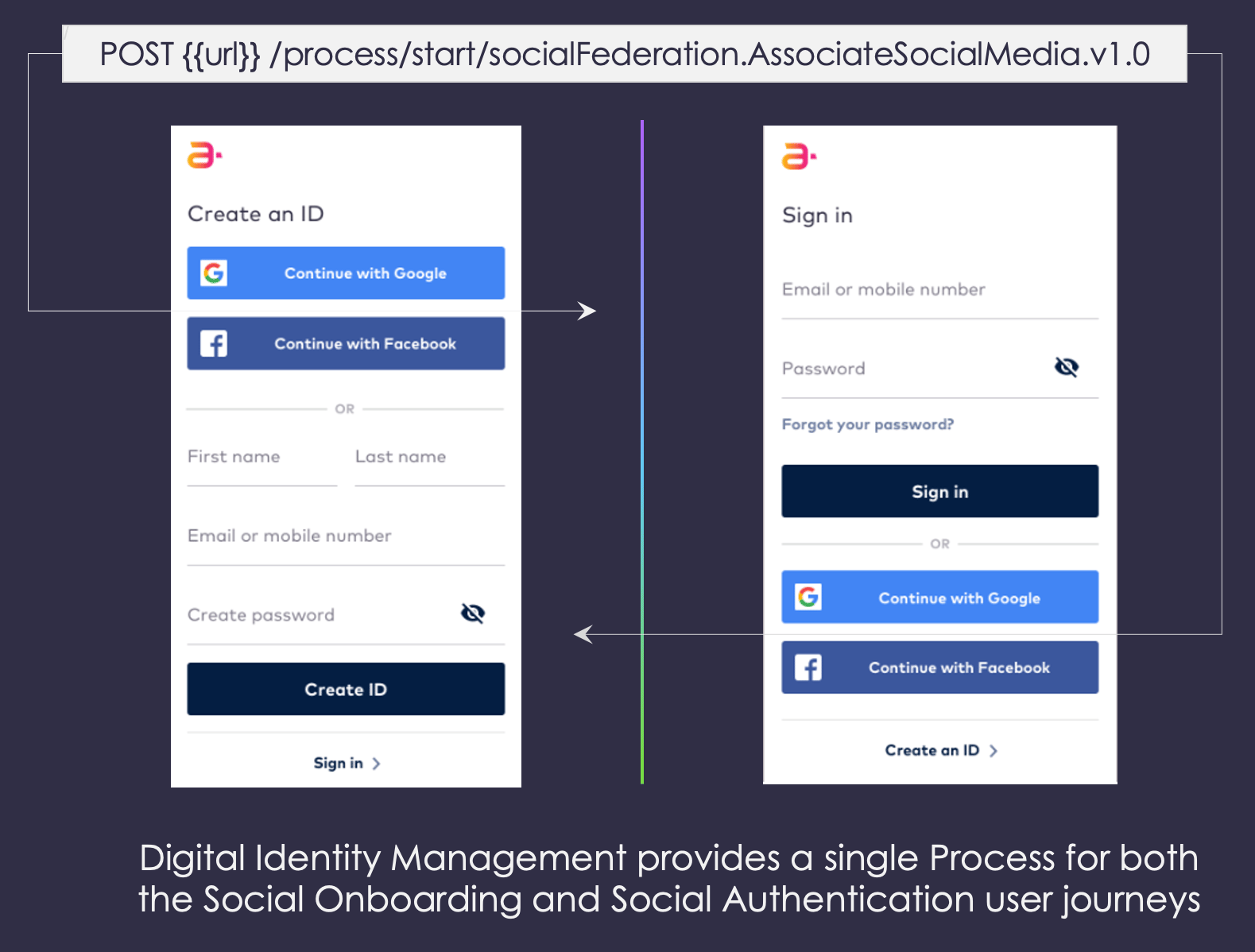

This API Process defines how an anonymous (or unauthenticated) user onboards and authenticates in Digital Identity Management using an integrated third-party social account. The Onboard and Authenticate User Process orchestrates two primary flows:

Onboarding with Social Media – a new, anonymous user signs up using their preferred social account. Digital Identity Management uses details returned from the social provider to create the User ID.
Authentication with Social Media – an anonymous user signs in using that account. The User ID already exists, and it the social account is already associated to the User ID.

[product: dim]

[/product: dim] This Process is distinct from the Associate Social Account to User ID Process. That Process can only be invoked by an existing, authenticated Digital Identity Management user who decides to associate their social account to their User ID.

How it works

When a user opts to onboard or authenticate with a specified social account provider, the Process redirects to the provider’s website wherein the user signs into their account. If this is the user’s first time (i.e., onboarding), then Digital Identity Management requests specific pieces of user data from the provider (i.e., name, email or mobile), and the provider asks the user for explicit permission to share those details. The provider then redirects back to Digital Identity Management and sends along an authorization code. Digital Identity Management immediately performs a second, back end call to redeem that code in exchange for the actual user data, along with additional internal data from the provider that will be used to create the association. Finally, Digital Identity Management redirects back to the front end application and passes along the user data, and application presents it to the user for them to confirm. Once the user confirms, Digital Identity Management uses that data to register the new User entity, and creates an internal association between the User and the social account. This internal association allows the user to easily authenticate into the service that uses Digital Identity Management as their Identity Provider (IdP). [product: dim]

[/product: dim] At a later date, the same user subsequently returns to the application and opts to authenticate with their associated social account. The process goes through the same initial exchange with the social provider, but the user doesn’t need to explicitly share that information again (unless they separately go to the provider and select to “forget” those permissions). Once the provider sends the authorization code back to Digital Identity Management, Digital Identity Management simply opens the user session on the server, and redirects back to the client service. From the user’s perspective, they simply click a single button or link (i.e., “Sign in with Google”) and, after a brief moment, they are authenticated into a given application. Note: This Process is designed according to the OAuth2.0 authorization framework. OAuth is an IETF standard protocol to authorize the transfer of resources across separate systems. Third-party integrations allow end users to share segments of their information from one website to another, without the need to expose their credentials. In this Process, the social provider essentially federates user authentication to Digital Identity Management. Similarly, Digital Identity Management can also broker authentication to other third-party applications in order to enable single-sign on (SSO) with Digital Identity Management as the IdP entry point. In other words, a user can authenticate into Digital Identity Management using their preferred method (including this one), and then remain signed in once they navigate to OIDC clients that are registered with Digital Identity Management. See the https://docs.vindicia.com/bundle/b_ConnectProductDescription/page/topics/accountIntegrationAndServiceManagement_c.html for more information on Digital Identity Management’s Single Sign-On solution, and how Digital Identity Management delivers that solution through OAuth 2.0 and it’s identity-specific extension, OpenID Connect (OIDC). Out of the box, Digital Identity Management comes with support for integrations with the following social account providers:

Apple
Facebook
Google
LinkedIn
Microsoft

However, your organization will need to take a few steps to configure your service’s specific integrations so that this and other related Processes will know what to do when they are invoked. First, your organization needs to navigate to the respective social provider’s developer portal to register an app ID. As a part of that process, the social provider issues specific secret keys. Then, you provide those keys to Digital Identity Management in the MarketONE Admin console, under the Social Connections settings menu. Once these two steps are complete, your instance of the Digital Identity Management service will support live calls between Digital Identity Management’s and the social provider(s). For example, to enable a Facebook integration, follow these steps:

Navigate to the Facebook Developer Portal, create an account, and sign in.
Create an App ID (select the For Everything Else option).
Enter the App Name.
Add the Facebook Login product and select the Web platform.
Facebook will then issue specific information required for the app integration. Make a note of the AppId and AppSecret.
Add the end url (Amdocs managed or custom domain) to the Valid OAuth Redirect URIs. This is where Digital Identity Management will redirect to once it finishes it’s communication with the social provider.

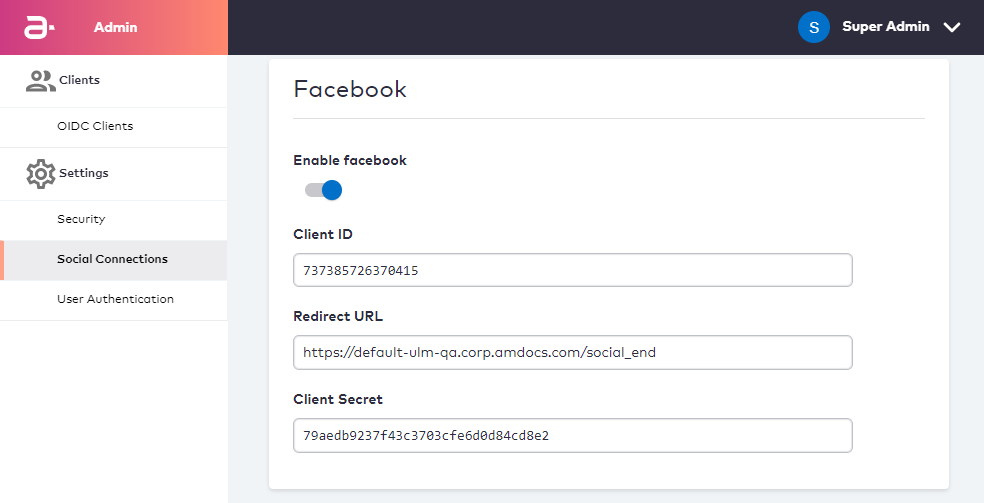

Navigate to the MarketONE Admin console, and sign in.
Navigate to Settings > Social Connections, and toggle the Enable Facebook option.
Add the AppId and AppSecret to the equivalent ClientId and ClientSecret fields.
Click Save at the bottom of the page.

Once these steps are complete, Facebook is then a valid provider that can be specified by this and other social-based Processes (e.g., the Associate Social Account to User ID Process). All supported social integrations follow the same pattern, and are configured from the same page within the MarketONE Admin console.

Adding Provider IDs to the Request URL

Like most Processes, this Process is initialized by the Process Start API. The Process Start API optionally consumes no payload but you can actually add the required parameters upfront in the initial API request URL. For example, in a normal invocation, the Process Start API consumes no payload:

**POST /process/start/socialFederation.SocialMediaAssistedOnboarding.v1.0**
<no body>

The Process then responds with a request for request for a supported providerID. The response includes an array of provider options:

**RESPONSE**
{
   "processId": "8f41d5cc-a4ab-45e9-9e3b-7f58a2ed183f",
   "processName": "socialFederation.SocialMediaAssistedOnboarding.v1.0",
   "displayMessage": "Please input required information",
   "stepName": "ProviderPrompt",
   "lastStep": false,
   "parameters": {
      "providerId": "String"
   },
   "output": {
      "providers": [
         "linkedin",
         "google",
         "facebook",
         "apple"
      ]
   }
}

Note: the array will only include options that your organization has enabled and configured in MarketONE Admin web app. In other words, if your organization only has Facebook and Google enabled, then only those options will appear in this response. The client then needs to specify the providerId in a subsequent Process Step API request:

**REQUEST - PUT /process/step**
{
   "processId": "8f41d5cc-a4ab-45e9-9e3b-7f58a2ed183f",
   "parameters": {
      "providerId": "facebook"
   }
}

In response, the Process returns a redirect URL to the specified social provider, and the flow continues as normal. However, the client can also simply invoke the Process with the providerId in the initial Process Start request URL:

**REQUEST - POST /process/start/socialFederation.SocialMediaAssistedOnboarding.v1.0?providerId=facebook **

This effectively skips that initial step that requires an explicit selection. As a best practice, adding the providerID to the request URL enables you to build your application to display social media badges on the sign-in and/or sign-up screens. The client can then invoke the provider-specific variation of the Process when a user clicks on a provider-specific badge.

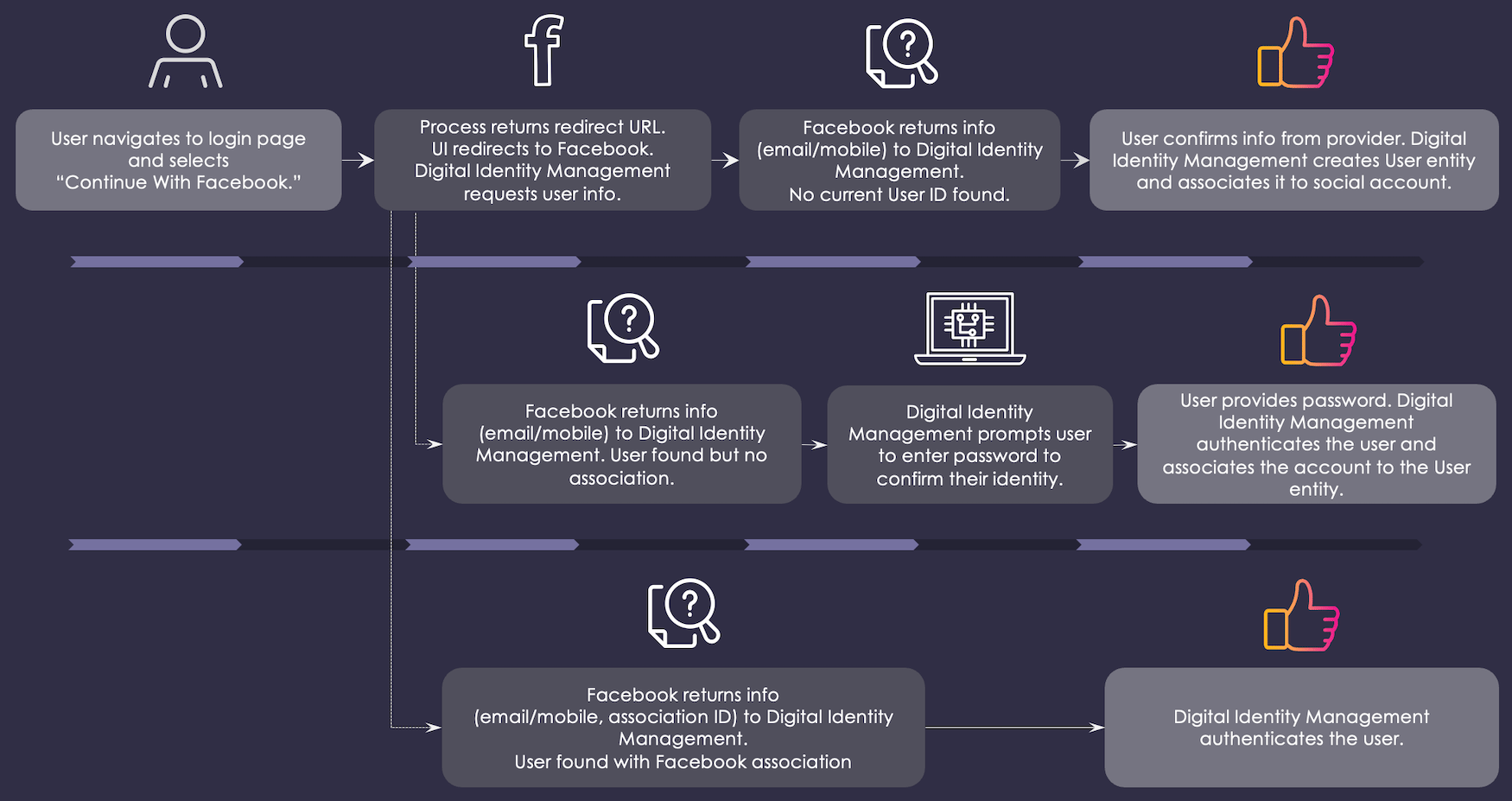

Responsive Process Design

This Process accounts for edge cases and user error scenarios wherein a user mistakenly begins at one flow’s starting point, but logistically should arrive at another flow’s end result. For example, a user with an existing User ID may mistakenly start from a client’s sign-up page. Alternatively, a user who has not yet onboarded starts on the sign-in page. Since the client UI invokes the exact same Process from either flow’s entry point, the communication between Digital Identity Management and the social provider ensures that the user arrives at the correct end point. The following conditions apply:

If the user details returned from the provider (i.e., email/mobile) are not found in Digital Identity Management, then the Process creates the new User entity. The user needs to confirm the details are correct. See the next section below for scenarios where the user changes the email/mobile before confirming.

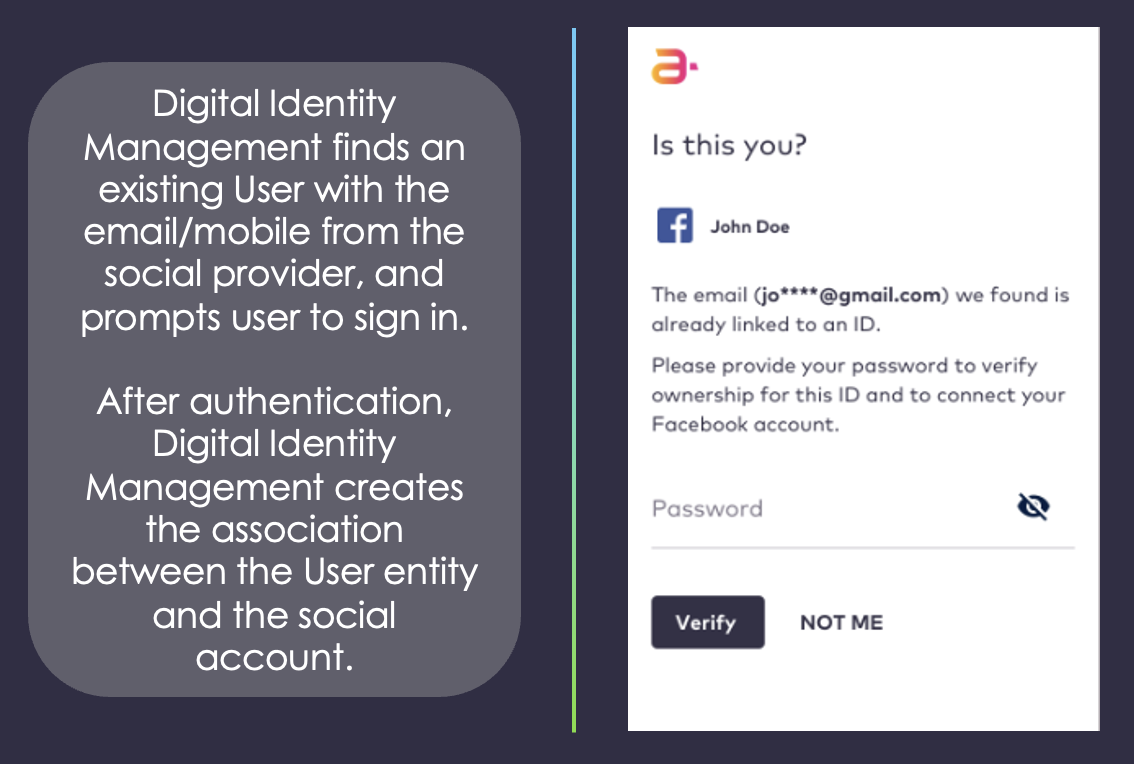

If the user details are found in Digital Identity Management on an existing User entity, but there is no existing association, then the Process prompts the user to sign in. Once the user signs in, the Process creates the association between the User entity and the social account.
If the user details are found in Digital Identity Management on an existing User, and the social connection already exists, then the Process simply authenticates the end user.

[product: dim]

[/product: dim] The result is a seamless flow that minimizes some of the friction that would otherwise occur as a result of user mistakes.

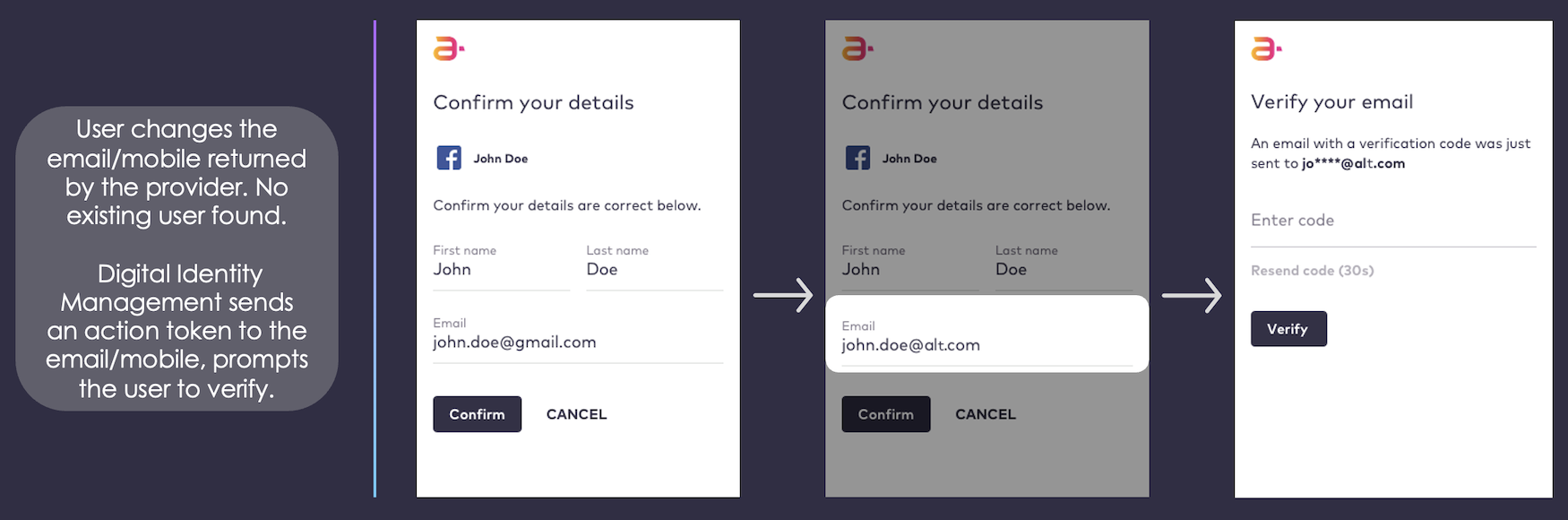

Modifying the contact channel

When a user onboards with their social account, the social provider returns data to Digital Identity Management (and Digital Identity Management passes that data to the client) that the user must confirm. This includes an email address and/or mobile number. If the user confirms the email/mobile without changing it, then Digital Identity Management creates and activates the User entity. The user does not need verify the channel, as Digital Identity Management implicitly trusts the social provider. However, the Process does allow for the user to change the email/mobile that was returned by the provider. If the user changes the email/mobile, the Process performs an additional check to see if that new email/mobile is already registered to an existing Digital Identity Management User. If the modified email/mobile is not found on an existing User entity, then the Process issues and sends an action token in a verification message to that contact channel. The Process then ends, and the user must redeem that token with the GET session/token API to invoke Activate User Process to complete their onboarding journey. [product: dim]

[/product: dim] Once invoked, the Activate User Process completes the user onboarding, associates the social account, and automatically authenticates the user. Note: If the social provider does not return any email or mobile, then user must provide one and verify it. Alternatively, if the modified email/mobile is found on an existing Digital Identity Management User entity, then the Process prompts the user to supply a password to prove that they own that User ID. Once the user provides a valid password, the Process authenticates the user, and automatically associates the social account to the existing User ID. [product: dim]

[/product: dim]

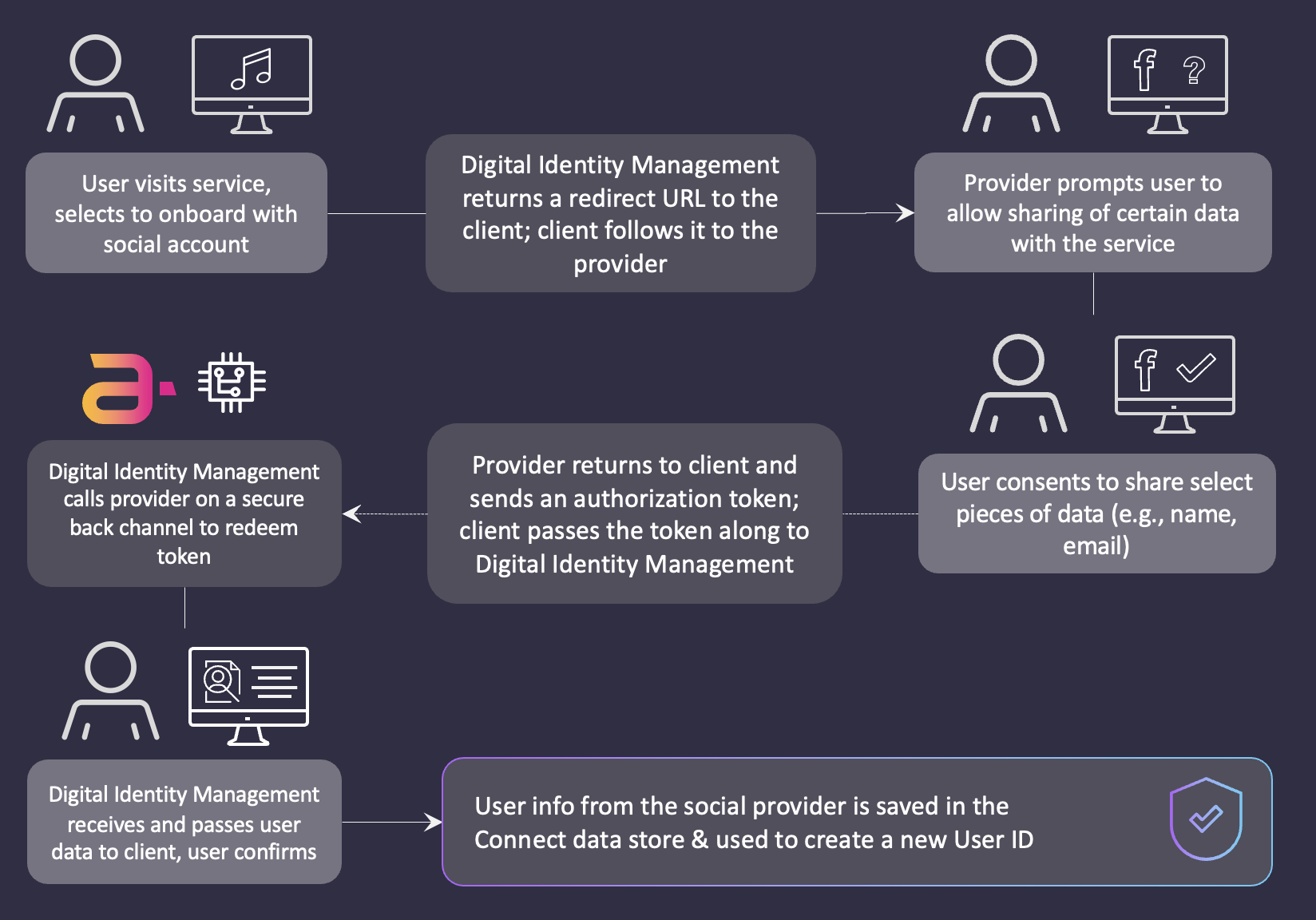

Process Flow - Onboarding

This section describes the Process at a high level, from an onboarding-oriented flow. Preconditions

The user is currently anonymous (i.e., they are not authenticated).
The User ID does not yet exist (i.e., the Digital Identity Management User entity does not yet exist in the cloud data store).

Basic Flow

The user navigates to the application’s “Create an ID” or “Sign Up” portal, and enters their email and/or mobile number.
The client UI redirects to the social provider, and the user authenticates into that provider’s service.
The provider prompts the user with terms and conditions, and the details that the user needs to consent to sharing.
- If the user does not consent to sharing their information, the Process ends.
The user consents to sharing their information, and the provider redirects back to Digital Identity Management.
On the back end, the provider sends along an authorization code to Digital Identity Management. Digital Identity Management makes a separate back channel call to the provider and redeems that token for the user data. Digital Identity Management then checks the data store for any current User with a matching email/mobile.
- This flow assumes no matching User is found. Digital Identity Management redirects back to the client, and passes along the user data for the user to confirm.
- If a matching User is found, but there is no association to the social account, then the Digital Identity Management prompts the user to authenticate (i.e., provide a password) in order to prove that they own the matching email/mobile.
- If a matching User is found, and it is already associated to this social account, then Digital Identity Management simply authenticates the user and informs the front end.
Digital Identity Management sends the provider data (name and email/mobile) to the client front end, and the UI prompts the user to confirm the details.
- When you enable and configure a social integration in MarketONE Admin, you’ll need to set a Redirect URL as a part of that configuration. This allows Digital Identity Management to know where it needs to redirect after acquiring user details from the social account provider.
The user confirms the details from the provider. The Process creates the new User entity with an activated status, associates the user to the social account, and authenticates the user.
- This flow assumes that the user confirms the details from the provider. Digital Identity Management trusts the provider and automatically “activates” the User entity (and its authentication identifier).
- If the user changes the email or mobile number, and then submits that to the Process, then Digital Identity Management creates the User entity with an activating status. The Process then issues and sends an action token to that new email/mobile for verification. The user cannot authenticate until they verify (i.e., activate) the email/mobile.

Post-conditions

A new User exists in Digital Identity Management with a verified email and/or mobile.
The user reaches the maximum number of failed input attempts. This is in the scenario where an existing User was found, and Digital Identity Management prompts the end user for a password.

Possible or Common Errors

The user did not consent to share information.
Invalid or unknown authN ID. User not found in the Digital Identity Management data store.
The Digital Identity Management User (and/or the authN ID) is not yet verified.

Process Flow - Authentication

This section describes the Process at a high level, from an authentication-oriented flow. Preconditions

The user has a fully activated Digital Identity Management User ID, with an associated social account.
The user is currently anonymous (i.e., they are not authenticated in Digital Identity Management).

Basic Flow

The user navigates to their sign in portal and selects to sign with their preferred social provider.
The client UI redirects to the social provider, and the user authenticates into that provider’s service.
- The Process ends if the user fails to sign into their social account.
- During the initial association between the Digital Identity Management User and the social account, the user previously consented to sharing their provider scopes with Digital Identity Management. Therefore, the provider will typically (and silently) remember this consent before automatically redirecting the browser back to Digital Identity Management.
The social provider redirects the user’s browser back to Digital Identity Management. Digital Identity Management authenticates and Digital Identity Management then redirects back to the client application.
The user consents to sharing their information, and the provider redirects back to Digital Identity Management.
- On the back end, Digital Identity Management that the association between the User and the social account exist, and that the user data from the provider is still valid.
Digital Identity Management authenticates the User (i.e., opens a user session in the cloud) and redirects back to the front end client application.
- When you enable and configure a social integration in MarketONE Admin, you’ll need to set a Redirect URL as a part of that configuration. This allows Digital Identity Management to know where it needs to redirect after authenticating the user.

Post-conditions

The User is authenticated.
The client may want to run the GET /user and any other entity management APIs to load the relevant user profile or otherwise “authenticated view” of the application.

Possible or Common Errors

The selected social media is not supported at this time. This might occur if your organization disables an integration with a social provider, but the client still specifies that provider in the Process request.
The user did not consent to share information. This occurs if the end user previously deleted their permissions that they gave to the social provider to share their data with Digital Identity Management (i.e., the consent they granted to the provider during the initial account association). If the user does this, the provider will re-prompt them for this consent during the Process execution. If the user rejects the prompt, then the Process ends, and Digital Identity Management will not authenticate them.

Settings

Certain aspects of the Process’ behavior are controlled by configurable settings. Your organization can manage these and other settings in the Admin Portal.

Application Settings	Default Setting
Max failed sign-in attempts	Maximum number of times the Process rejects bad input before ending.Applies to use cases wherein an user needs to provide their password and prove that they own an existing Digital Identity Management User ID.	10 failed attempts
Failed attempts time window	The length of time in which the user’s total failed attempts are counted towards lockout, measured in seconds. After this time expires, the count resets.	3600 seconds
User lockout duration	The length of time that a user ID lockout lasts, measured in sections.	3600 seconds
Enable reCAPTCHA	Enables Invisible reCAPTCHA, version2. Enabling reCAPTCHA also includes setting additional fields for client and test secret keys.	Enabled
tokenURL	Base for the action token URL to include in the notification message sent to the user’s external channel. The actual token value will be appended to this String to form the complete URL. For this Process, this setting applies to use cases wherein the user changes the email/mobile that was returned by the social provider. The Process sends an action token out to that email/mobile for verification.	https://idp/user\_confirm?token\_value=
Token (long-form) Expiration	Determines the number of minutes before a verification link expires.	10080 minutes (7 days)
Token (short-form) Expiration	Determines the number of minutes before an OTP expires. This setting is not configurable; it is noted here for context.	5 minutes
Valid Email Pattern	Defines the logic for an acceptable email format. JSON format.	`.+@.+\..+`
Valid Mobile Pattern	Defines the logic for an acceptable mobile number format. JSON format.	`^$?([0-9]{3})$?[-.\s]?([0-9]{3})[-.\s]?([0-9]{4})$`
Your organization can manage settings in the MarketONE Admin console.

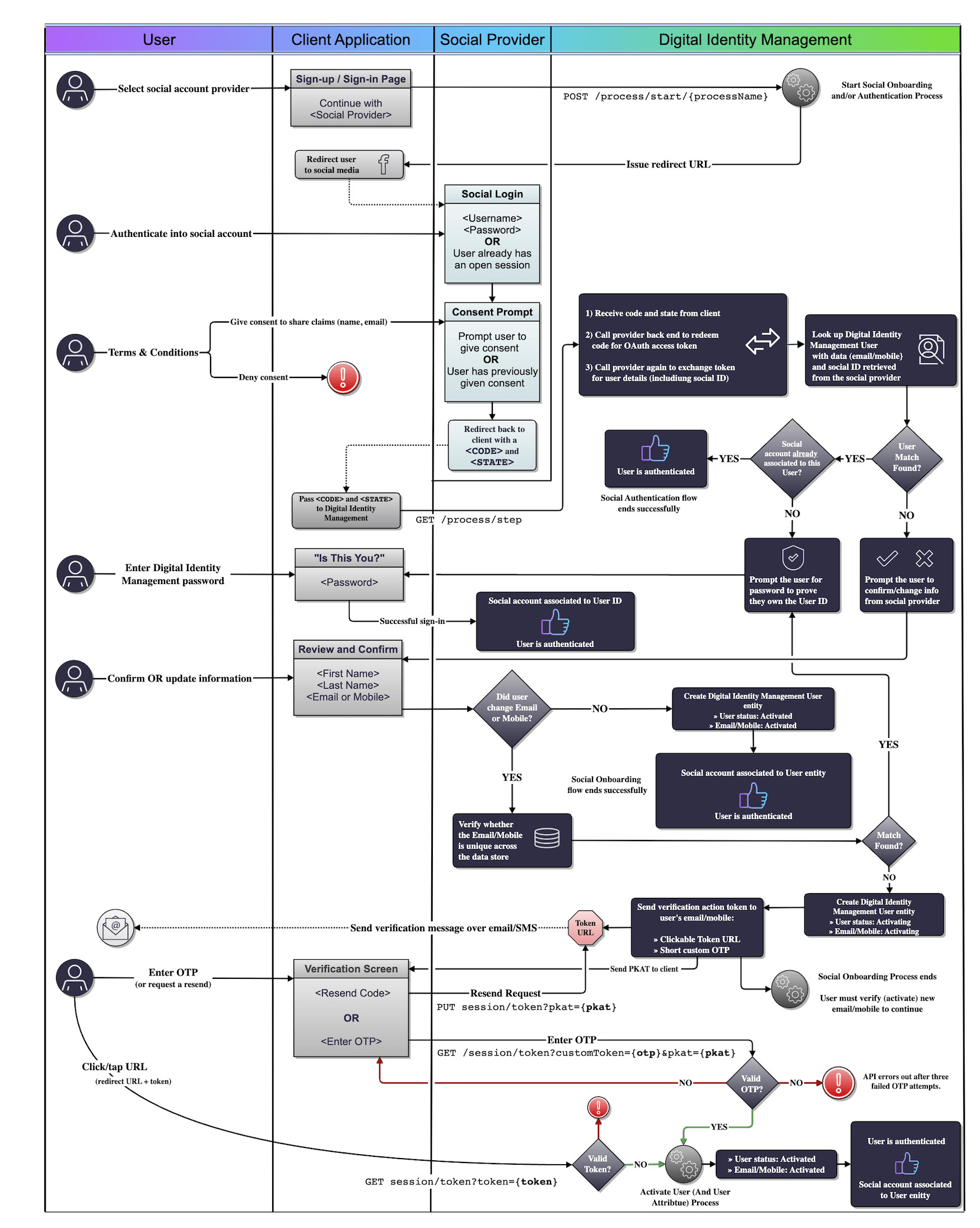

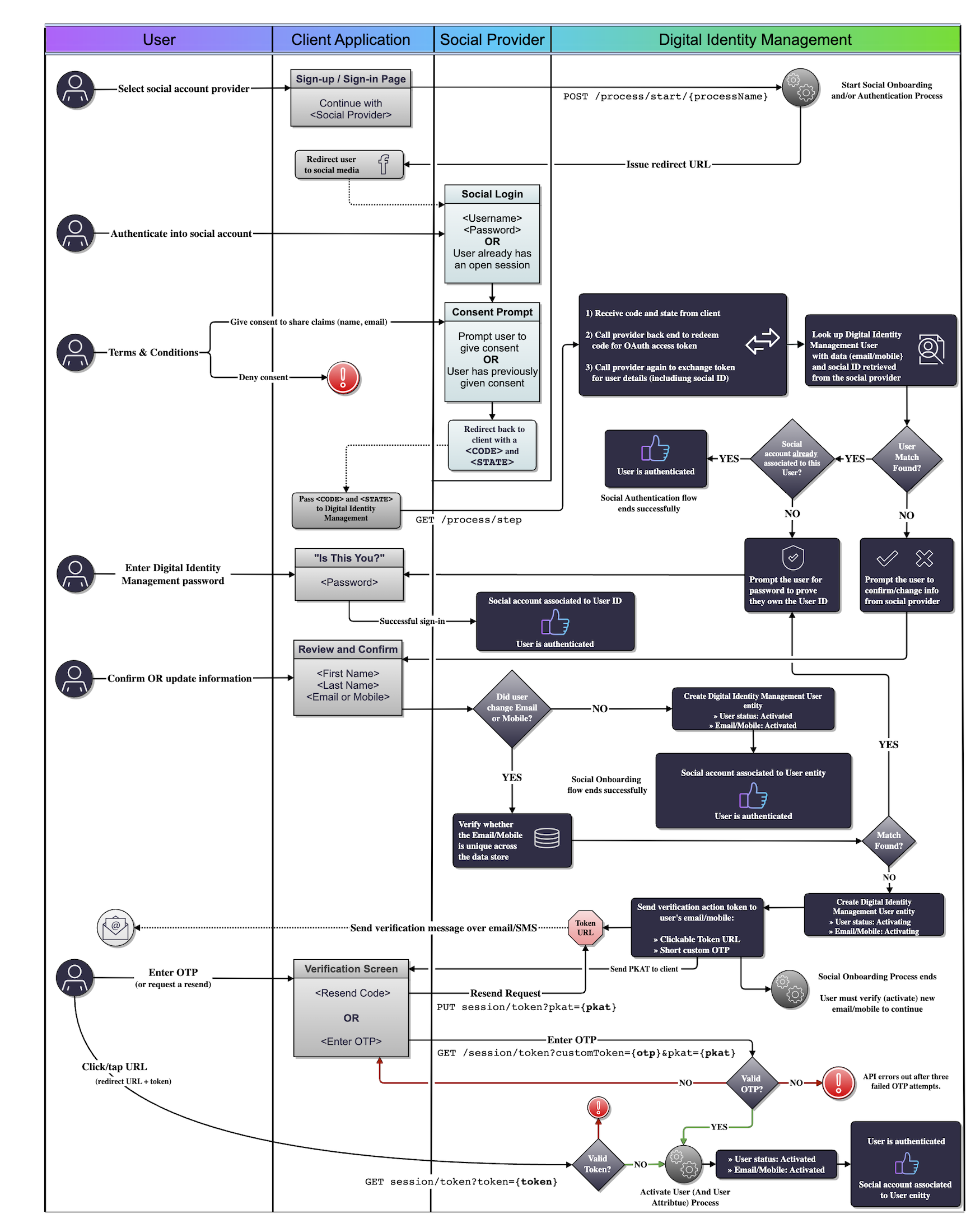

User Journey Flow Diagram

This diagram illustrates the standard user journey using the Onboarding and Authenticate User with Social Account Process, and some of the paths the Process can take based on settings and/or user input. [product: dim]

[/product: dim] This diagram also incorporates a token resend option (with the [PUT /session/token](c_putSessionToken) API) and the Activate User Processes.

Use Cases

The following sub-topics provide guided walkthroughs of the Onboard and Authenticate User with Social Account Process:

Additional Notes

Digital Identity Management allows a user to have more than one social accounts associated to their User ID.
Digital Identity Management sends a notification message to the user’s email/mobile that confirms when they have successfully associated a social account.
If the social provider returns an email address and mobile number, and the user changes the value for each, then they will need to verify each channel separately. The Process will issue and send two separate action tokens, and send them to each channel. Additionally, the Process returns two separate PKATs to the client application.
Digital Identity Management currently supports social associations with the following providers: Facebook, Google, Apple ID, and LinkedIn.
Social onboarding
Social authentication
Social account errors
